20W Pulsed Fiber Laser
1、 Specifications:
Model |
GYFL-1064-20A |
Wavelength |
1060nm~1080nm |
Polarization |
Random |
Beam quality(M2) |
<1.5 |
Nominal average output power |
>20W |
Single pulse energy |
0.7mj@29.4KHz |
Pulsed duration(FWHM) |
90~110ns |
Pulse repetition rate |
29.4KHz-62.5KHz |
Beam Diameter |
6~8mm |
Output fiber cable length |
1.8M |
Working voltage |
24V |
Power consumption |
<150W |
Cooling method |
Air-cooling |

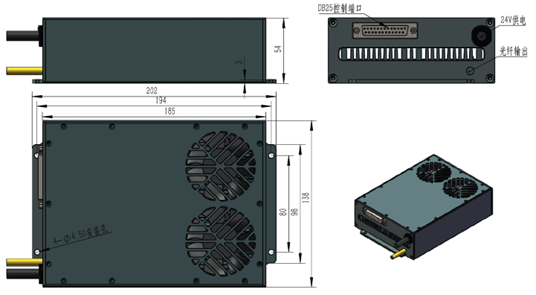

Dimension W×D×H |
202mm×138mm×54mm |
Operating temperature |
0℃~40℃ |
Store temperature |
-10℃~60℃ |
Humidity |
30%~85% |
2、Application:
金属打标
Metal marking
塑料打标
Plastics marking
科研医疗
